K-80 ACS

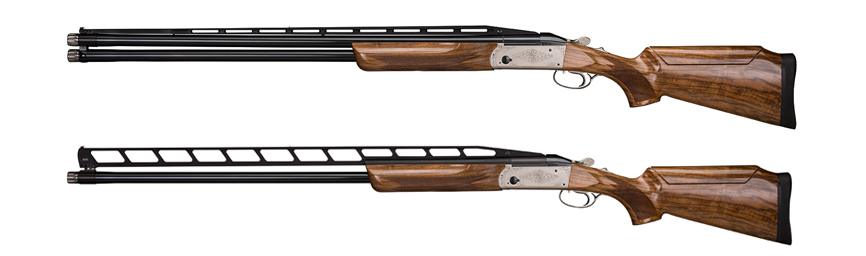

About the K-80 ACS

With one gun you can do it all.

Krieghoff offers shooters the opportunity to enjoy serious competition or recreational participation in all three disciplines with one gun – The K-80 ACS. Built for All Clay Sports, the K-80 ACS features a 30” or 32” O/U barrel paired with a 34” Unsingle barrel – both complete with Floating Rib, adjustable Point of Impact and factory steel choke tubes.

POI on the O/U barrel ranges from approximately 50/50 to 60/40 high with a higher 70/30 achieved by using a figure eight sight picture. Changing your POI to your personal preferences is as simple as using the adjustment wheel on the rib of the ACS. By loosening the set screw and lowering the rib down you can achieve a higher POI.

The Unsingle barrel features the same adjustment wheel and POI can range from 60/40 to a full pattern high. Perfect for quickly acquiring the challenging Handicap and Singles targets.

Built around the proven K-80 receiver, the ACS model presents a “no limits” option for shooters who welcome the challenge of varying target presentations and enhancing their skills. The ACS offers a heads-up shooting position which reduces perceived recoil and provides fast target acquisition in all three games.


Specifications and Options

Gauge: 12 Gauge; 3“ chambers
Barrels: - 30“, O/U, CT/CT (Std:S,2xIC,M,IM), TF Floating Rib - or
- 32“, O/U, CT/CT (Std:S,2xIC,M,IM), TF Floating Rib
- 34”, Unsingle (UNS), CT (Std: M,IM,F), TS Floating Rib
O/U barrel comes from the factory shooting 50/50 POI (approx.).Using the adjustment wheel a POI of 60/40 or 70/30 (approx.) can be achieved.
UNS barrel comes standard with 60/40 POI adjustable to (approx.) a full pattern high.
Rib: For O/U: TF 12-8mm (approx. 1/2:” to 1/3”) – Tapered Flat Floating Rib
For UNS: TS 12-8mm (approx. 1/2” to 1/3”) – Tapered Step Floating Rib
Chokes: Choke Tubes – 8 Factory Steel chokes included (Titanium Choke Tubes Optional)
Available are Cylinder (C), Skeet (S), Improved Cylinder (IC), Light Modified (LM), Modified (M), Light Improved Modified (LIM), Improved Modified (IM), Full (F), and Super Full (SF)
Sights: White pearl front bead and metal center bead
Action: Case hardened, nickel plated steel receiver with Nitride Silver finish
Trigger: Single selective mechanical trigger, adjustable for finger length. Trigger pull: Approximately 3-3/4 lbs.
Safety: Top tang push button safety. Can be locked in “off“ position
Stock: Fine-checkered select Turkish walnut with satin epoxy finish.
#6 Monte Carlo Stock with Adjustable Comb designed for Floating Rib.
Forearm: #3 Trap
Grade/Engraving: Standard is classic K-80 scroll engraving. Optional engravings available
Weight: Approximately 8 3/4 lbs.
Case: All K-80 ACS guns come in a fitted aluminum two barrel case
